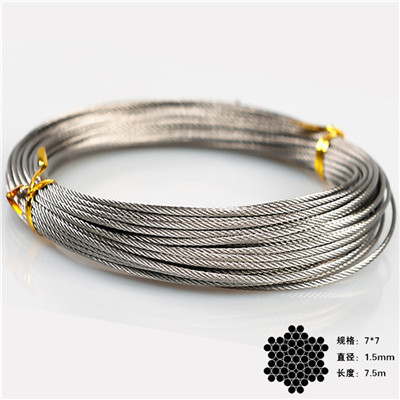

AISI 304 316 1.5mm 7x7 Stainless Steel Wire Rope /stainless steel wire cable

  • Material Grade::1.201,304,304L,316,316L,2080,etc
  • Diameter::0.15mm-120mm
  • Construction::1X7,1X19,6x7,7X7,6x19,7X19,6X37,7X37,3x3etc.
  • Tensile strength ::1570MPa,1670MPa,1770MPa,1870MPa,etc
PRODUCT DETAILS


Product Name

Stainless Steel Wire Rope/Cable

Material

stainless steel 201202  301302302HQ303303F304304HC304L316316L310310S321631,2080etc

Diameter

0.15mm-120mm

Standard

DIN GB  JIS BA AISI,ASTM ,BS,ETC

Construction

1X7,1X19,6x7,7X7,6x19,7X19,6X37,7X37,3x3etc. Many constructions to meet your requirements.

Surface

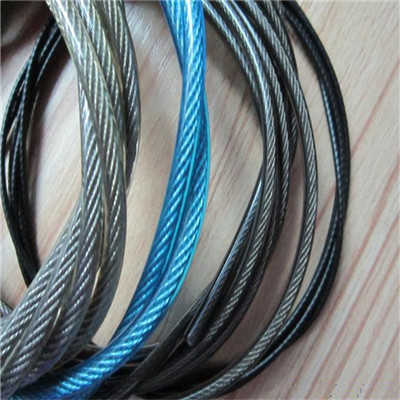

Stainless steel, Coated PVC/PE/NYLON steel wire rope etc.

Tensile Strength

1270MPa,1370MPa,1470MPa,1570MPa,1670MPa,1770MPa,1870MPa, 1960MPa, 2060MPa or offer according customer's requests

              core Type

1.fiber core(FC):made up of synthetic material. most flexible and elastic, but getting crushed easily.
2.wire strand core(IWS):made up of one additional strand of wire, and is typically used for suspension.
3.independent wire rope core(IWRC): most durable in all types of environments. The lay direction can be right (symbol Z) or left (symbol S) and the lay direction of the wires can be right (symbol z) or left (symbol s).

Packing

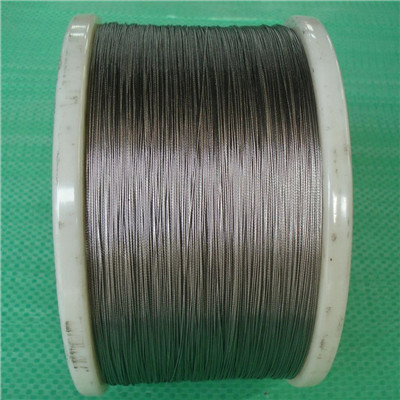

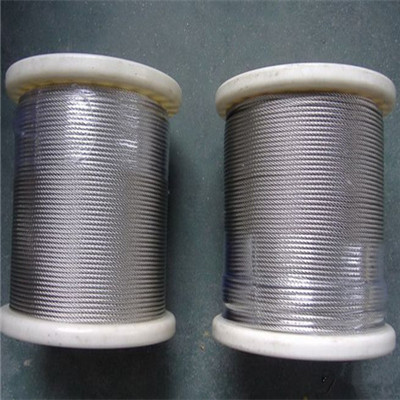

Soft Coil, Poly Bag, Woven Bag, Carton,Plastic Spool, Wooden Spool, Wooden Case, Wooden Pallet,etc or  according to your requirements.

Applications

Stainless steel wire rope are widely used in in elevators, lifting equipment, maneuvering wires, metallurgy, mining, machinery, aviation, automobiles, marine, marine fishery petroleum industry, chemical industry, textile industry, machinery, precision instrument, medical instrument, decoration , fishing and other general areas,etc;

Trade Term

EXW, FOB, CFR, CIF, DDU,etc

MOQ

100M

Payment Term

T/T, L/C ,See B/L copy ,or discuss with clients

Note

OEM ,Custom and free sample is available !

construction

dia(mm)

tolerance

Appro Weight(kg/100m)

MBL/KN

7*7

0.33

0.037

0.1

0.36

0/+0.08

0.054

0.15

0.5

0.09

0.14

0.8

0.25

0.29

1

0.39

0.56

1.2

0.56

0.81

1.5

0.88

1.27

1.8

1.27

1.83

2

1.57

2.25

2.5

2.45

3.52

3

3.53

5.07

4

0/+0.07

6.28

9.01

5

9.82

14.09

6

0/+0.06

14.14

20.29

8

0/+0.0

25.15

36.07

10

39.3

56.36

12

56.59

81.16
