Stainless steel wire rope

PRODUCT DETAILS

AISI316 8.0mm 1x7 ,7*7Stainless Steel Wire Rope /stainless steel wire cable

1. Grade:201,304,304L,316,316L,2080,etc

2. Diameter:0.15mm-120mm

3. Construction:1X7,1X19,6x7,7X7,6x19,7X19,6X37,7X37,3x3etc.

4. Tensile strength :1570MPa,1670MPa,1770MPa,1870MPa,etc



304stainless steel wire rope ;316 stainless steel wire cable ;316L stainless steel wire rope /wire strand


Product Name

Stainless Steel Wire Rope/Cable

Material

stainless steel 201202  301302302HQ303303F304304HC304L316316L310310S321631,2080etc

Diameter

0.15mm-120mm

Standard

DIN GB  JIS BA AISI,ASTM ,BS,ETC

Construction

1X7,1X19,6x7,7X7,6x19,7X19,6X37,7X37,3x3etc. Many constructions to meet your requirements.

Surface

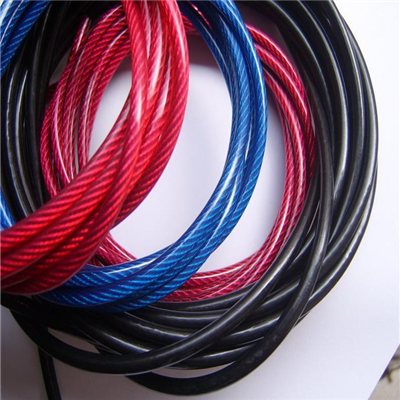

Stainless steel, Coated PVC/PE/NYLON steel wire rope etc.

Tensile Strength

1270MPa,1370MPa,1470MPa,1570MPa,1670MPa,1770MPa,1870MPa, 1960MPa, 2060MPa or offer according customer's requests

Product Features

High dimensional accuracy, up to ± 0.05mm

Surface quality, good brightness;

Stable chemical composition, steel pure quality

High strong corrosion resistance,

High break strength and flexibility ,

High tensile strength and fatigue strength;

core Type

1.fiber core(FC):made up of synthetic material. most flexible and elastic, but getting crushed easily.
2.wire strand core(IWS):made up of one additional strand of wire, and is typically used for suspension.
3.independent wire rope core(IWRC): most durable in all types of environments. The lay direction can be right (symbol Z) or left (symbol S) and the lay direction of the wires can be right (symbol z) or left (symbol s).

Packing

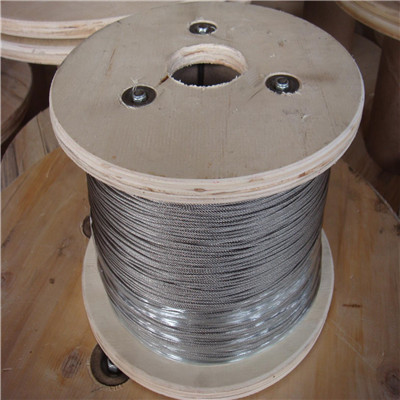

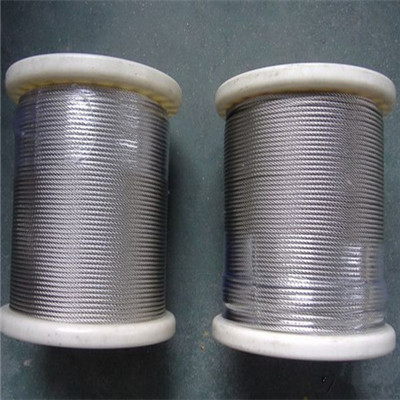

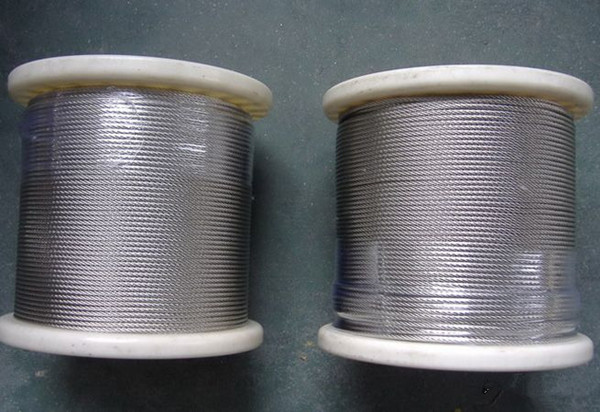

Soft Coil, Poly Bag, Woven Bag, Carton,Plastic Spool, Wooden Spool, Wooden Case, Wooden Pallet,etc or  according to your requirements.

Applications

Stainless steel wire rope are widely used in in elevators, lifting equipment, maneuvering wires, metallurgy, mining, machinery, aviation, automobiles, marine, marine fishery petroleum industry, chemical industry, textile industry, machinery, precision instrument, medical instrument, decoration , fishing and other general areas,etc;

Trade Term

EXW, FOB, CFR, CIF, DDU,etc

MOQ

100M
